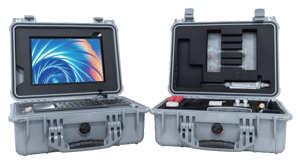

Shine Portable Ion Chromatograph CIC-P80
Compact, Versatile, and Reliable Ion Analysis On-Site or in the Lab.
The Shine Portable Ion Chromatograph is a lightweight, compact instrument designed for both laboratory and field applications. Encased in a robust, triple-protection housing (waterproof, corrosion-resistant, and dustproof), it ensures safe and reliable operation under challenging conditions. The innovative separation of water and electrical systems prevents circuit damage due to eluent leakage, while uninterrupted power supply technology allows battery replacement without disrupting operation.
Paired with the Shinelab intelligent workstation, the portable IC offers full instrument control, automated data acquisition, and advanced chromatogram processing, providing a seamless and secure user experience.
Key Features
- Multi-Scenario Adaptability – suitable for both laboratory and on-site testing
- Water-Electricity Separation – protects the circuit from eluent or washing liquid leakage
- Uninterrupted Power Supply – ensures continuous operation during battery replacement
- Shinelab Workstation – integrated database-driven software for instrument control, data acquisition, analysis, and secure reporting; optional Bluetooth printer for on-site printing
- User-Friendly HMI – equipped with standard Bluetooth mouse and keyboard; supports tablet/laptop touchscreen operation
- Optional Accessories – portable eluent generator for gradient elution and portable autosampler for increased workflow efficiency
- Inhalation Sampling Design – reduces pollution, minimizes syringe usage, and aligns with green chemistry principles
Technical Highlights
- Pump Type: High-pressure, low-pulse dual-plunger tandem pump
- Pump Head Material: PEEK
- Max Pressure: ≥ 35 MPa
- Flow Range: 0.001–9.999 mL/min, increment 0.001 mL/min
- Flow Error: 1.78 %
- Detector: Automatic range conductivity detector
- Detector Resolution: ≤ 0.0020 nS
- Detection Range: 0–45,000 μS/cm
- Flow Cell Volume: ≤ 0.8 μL
- Max Operation Pressure: ≥ 10 MPa
- Baseline Noise: ≤ 0.0003 μS
- Baseline Drift: ≤ 0.029 μS/30 min
- Minimum Detectable Concentration: Cl⁻ ≤ 0.00291 μg/mL; Li⁺ ≤ 0.00012 μg/mL
Your benefits
The Shine Portable IC combines compact portability, robust protection, and full analytical capability for on-site or laboratory applications.
With advanced automation, secure data handling, and green chemistry-conscious design, it enables high-precision ion analysis anywhere, providing a reliable, user-friendly, and versatile solution for modern analytical workflows.

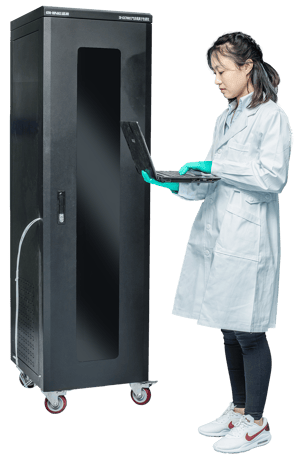

Shine SH-WIC5000 & SH-GIC7000 Online Ion Chromatography Systems
Automated, Intelligent, and Continuous Monitoring of Water and Atmospheric Samples
The Shine SH-WIC5000 and SH-GIC7000 are advanced, fully automated online ion chromatography (IC) systems designed for continuous, real-time monitoring of anions and cations in water and atmospheric samples. With intelligent software, dual-channel detection, and comprehensive online pretreatment, these systems deliver accurate, reliable, and fully traceable analytical data 24/7.
SH-WIC5000 – Online Water Quality IC
Key Features
- Dual-Channel Detection – simultaneous measurement of anions and cations
- Automatic Data Correction – regular calibration ensures accurate and reliable results
- Thermostatic Column Oven & High-Sensitivity Bipolar Conductivity Detector – stable and precise measurements
- Intelligent Chromatography Software – intuitive icon-based interface for parameter setup, real-time monitoring, and data processing
- Automatic Maintenance & Self-Check – routine cleaning and equipment monitoring for reliable operation
SH-GIC7000 – Online Atmospheric IC
Key Features
- Dual-Channel Detection – simultaneous measurement of anions and cations in particulate or gas samples
- Flexible Sampling Methods – adaptable for different particle sizes and sample types
- Automatic Data Correction – standard calibration ensures precise results
- Thermostatic Column Oven & High-Sensitivity Bipolar Conductivity Detector – ensures data stability
- Intelligent Chromatography Software – intuitive interface with real-time monitoring and accurate data processing
- Automatic Maintenance & Self-Check – automated cleaning and status verification
Your benefits
Both the SH-WIC5000 and SH-GIC7000 provide fully automated, intelligent, and humanized monitoring solutions for water and atmospheric quality analysis.
With continuous operation, dual-channel detection, remote connectivity, and robust pretreatment, they ensure reliable, accurate, and traceable results while minimizing operator intervention and maximizing efficiency.
